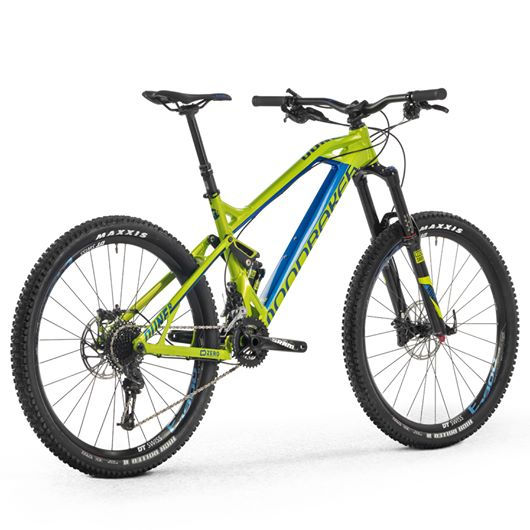

CUADRODune 27´5 Stealth Evo alloy Zero Suspension System FG 160mm
TALLASS / M / L / XL
AMORTIGUADORRockShox Monarch Plus RC3 Solo Air 215x63.5mm
HORQUILLARockShox Pike 27´5 RC 15mm tapered 160mm
DIRECCIÓNFSA Nº57 ACB Bearings integrated tapered 1-1/8”->1/5”
STEMOnoff Stoic FG 30mm
MANILLARMondraker custom design 1” 780mm
PUÑOSOnoff Diamond 1lock-on
TIJARockShox Reverb Stealth 31.6mm
SILLÍNSDG Circuit MTN
FRENO DELANTEROSram Guide R 180mm
FRENO TRASEROSram Guide R 180mm
MANETAS DE FRENOSram Guide R
LLANTASDT E1900 Spline 27´5” Tubeless Ready wheelset
RADIOSDT Champion
BUJE DELANTERODT E1900 Spline 15mm
BUJE TRASERODT E1900 Spline 12x142mm w/DT RWS axle
NEUMÁTICOMaxxis High Roller II TLR Dual Exo 27´5x2.3
BIELASSram S1000 36/22T
PEDALIERSram GXP XR 73mm
PEDALES/
CADENASram PC-1031 10s
DESVIADORShimano XT FD-M786D
CAMBIOSram GX Type2.1 Long cage 10s
MANDOSSram Trigger GX 2x10s
PIÑÓNSram PG-1020 11-36T 10s
PESO SIN PEDALES 13.8kg
